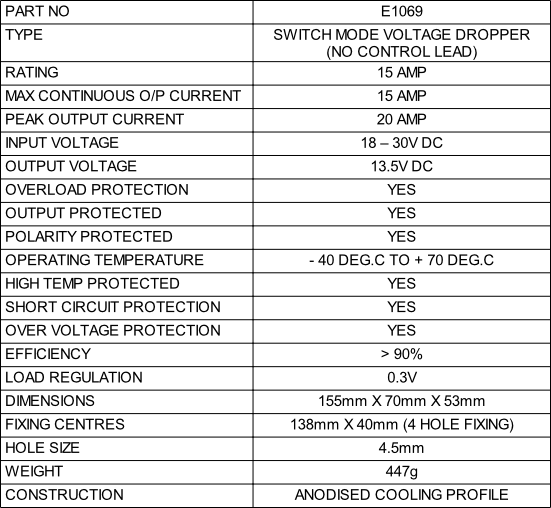

PART NO
E1069
TYPE
SWITCH MODE VOLTAGE DROPPER
(NO CONTROL LEAD)
(NO CONTROL LEAD)
RATING
15 AMP
MAX CONTINUOUS O/P CURRENT
15 AMP
PEAK OUTPUT CURRENT
20 AMP
INPUT VOLTAGE
18 – 30V DC
OUTPUT VOLTAGE
13.5V DC
OVERLOAD PROTECTION
YES
OUTPUT PROTECTED
YES
POLARITY PROTECTED
YES
OPERATING TEMPERATURE
- 40 DEG.C TO + 70 DEG.C
HIGH TEMP PROTECTED
YES
SHORT CIRCUIT PROTECTION
YES
OVER VOLTAGE PROTECTION
YES
EFFICIENCY
> 90%
LOAD REGULATION
0.3V
DIMENSIONS
155mm X 70mm X 53mm
FIXING CENTRES
138mm X 40mm (4 HOLE FIXING)
HOLE SIZE
4.5mm
WEIGHT
447g
CONSTRUCTION
ANODISED COOLING PROFILE

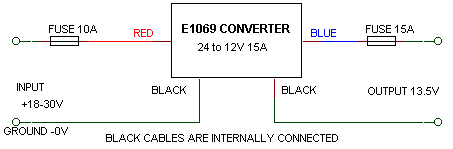

E1069 15AMP VOLTAGE CONVERTER 24V - 12V (NO CONTROL LEAD)
Specification
Specification
For O.E.M. Customers, Leads can be terminated to suit your requirements
This Converter has been designed
using a building block system
to obtain the power needed
to suit your requirements
This Converter has been designed
using a building block system
to obtain the power needed
to suit your requirements
