PART NO
E1199
TYPE
SWITCH MODE STEP DOWN
BATTERY CHARGER
CHARGING CURRENT
60 AMP
INPUT VOLTAGE
18 – 30V DC
OUTPUT VOLTAGE
14V DC
CONTROL INPUT VOLTAGE (CVIN)
CHARGER ENABLED:  >26.5V DC
CHARGER DISABLED: < 25V DC
OVERLOAD PROTECTION
YES
POLARITY PROTECTED
EXTERNAL FUSE
HIGH TEMP PROTECTED
YES
SHORT CIRCUIT PROTECTION
YES
EFFICIENCY
> 90%
DIMENSIONS
330mm X 230mm X 5mm
FIXING CENTRES
(4 HOLE FIXING)
HOLE SIZE
6mm
WEIGHT
3578g
CONSTRUCTION
4 X E932 15A CHARGER MOUNTED ON A SINGLE ALUMINIUM PLATE

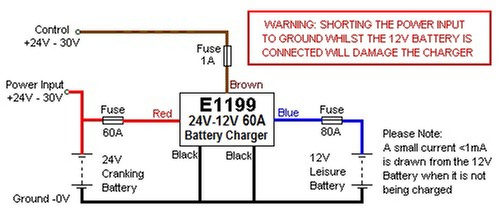

E1199 60AMP BATTERY CHARGER 24V - 12V (26V Turn On)

Specification
This 60A Battery Charger =
4 X E932 15A Battery Chargers wired in parallel
to form a single 60A module
E1199 60A 24v-12v Battery Charger (26V turn on)
