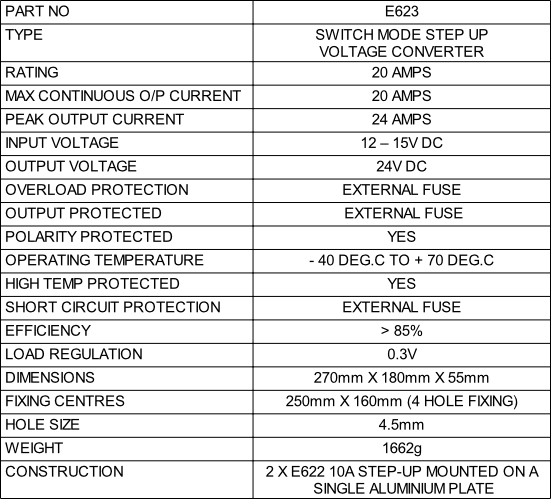

PART NO
E623
TYPE
SWITCH MODE STEP UP
VOLTAGE CONVERTER
VOLTAGE CONVERTER
RATING
20 AMPS
MAX CONTINUOUS O/P CURRENT
20 AMPS
PEAK OUTPUT CURRENT
24 AMPS
INPUT VOLTAGE
12 – 15V DC
OUTPUT VOLTAGE
24V DC
OVERLOAD PROTECTION
EXTERNAL FUSE
OUTPUT PROTECTED
EXTERNAL FUSE
POLARITY PROTECTED
YES
OPERATING TEMPERATURE
- 40 DEG.C TO + 70 DEG.C
HIGH TEMP PROTECTED
YES
SHORT CIRCUIT PROTECTION
EXTERNAL FUSE
EFFICIENCY
> 85%
LOAD REGULATION
0.3V
DIMENSIONS
270mm X 180mm X 55mm
FIXING CENTRES
250mm X 160mm (4 HOLE FIXING)
HOLE SIZE
4.5mm
WEIGHT
1662g
CONSTRUCTION
2 X E622 10A STEP-UP MOUNTED ON A
SINGLE ALUMINIUM PLATE
E623 20AMP VOLTAGE CONVERTER 12V - 24V
Specification
Specification
This 20A Converter =
2 X 10A Converters wired in parallel
to form a single 20A module
