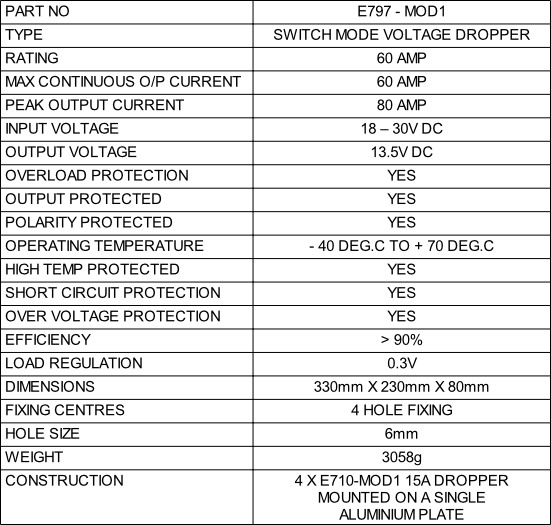

PART NO

E797

TYPE

SWITCH MODE VOLTAGE DROPPER

RATING

60 AMP

MAX CONTINUOUS O/P CURRENT

60 AMP

PEAK OUTPUT CURRENT

80 AMP

INPUT VOLTAGE

18 – 30V DC

OUTPUT VOLTAGE

13.5V DC

OVERLOAD PROTECTION

YES

OUTPUT PROTECTED

YES

POLARITY PROTECTED

YES

OPERATING TEMPERATURE

- 40 DEG.C TO + 70 DEG.C

HIGH TEMP PROTECTED

YES

SHORT CIRCUIT PROTECTION

YES

OVER VOLTAGE PROTECTION

YES

EFFICIENCY

> 90%

LOAD REGULATION

0.3V

DIMENSIONS

380mm X 248mm X 80mm

FIXING CENTRES

361mm X 229mm (4 HOLE FIXING)

HOLE SIZE

6mm

WEIGHT

3578g

CONSTRUCTION

4 X E710-MOD1 15A DROPPER MOUNTED ON A SINGLE
ALUMINIUM PLATE

E797 60AMP VOLTAGE CONVERTER 24V - 12V

Specification

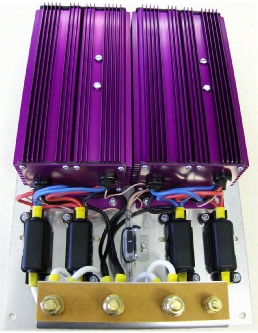

This 60A Converter =
4 X 15A Converters wired in parallel
to form a single 60A module
