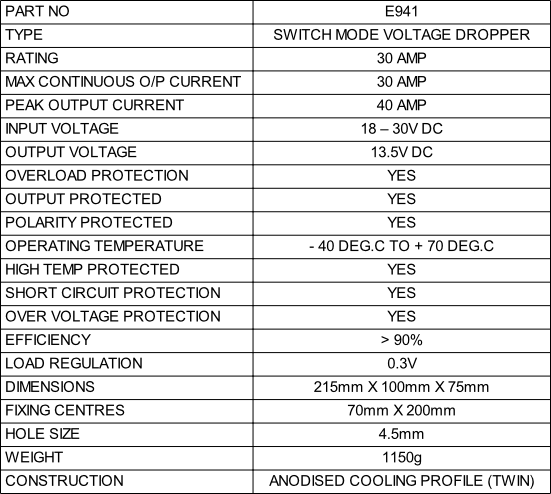

PART NO
E941
TYPE
SWITCH MODE VOLTAGE DROPPER
RATING
30 AMP
MAX CONTINUOUS O/P CURRENT
30 AMP
PEAK OUTPUT CURRENT
40 AMP
INPUT VOLTAGE
18 – 30V DC
OUTPUT VOLTAGE
13.5V DC
OVERLOAD PROTECTION
YES
OUTPUT PROTECTED
YES
POLARITY PROTECTED
YES
OPERATING TEMPERATURE
- 40 DEG.C TO + 70 DEG.C
HIGH TEMP PROTECTED
YES
SHORT CIRCUIT PROTECTION
YES
OVER VOLTAGE PROTECTION
YES
EFFICIENCY
> 90%
LOAD REGULATION
0.3V
DIMENSIONS
215mm X 100mm X 75mm
FIXING CENTRES
70mm X 200mm
HOLE SIZE
4.5mm
WEIGHT
1150g
CONSTRUCTION
ANODISED COOLING PROFILE (TWIN)
E941 30AMP VOLTAGE CONVERTER 24V - 12V (Twin)
Specification
This 30A Converter = 2 X 15A Converters wired in parallel to form a single 30A module
E941 24v-12v 30A voltage converter, 30A voltage dropper
