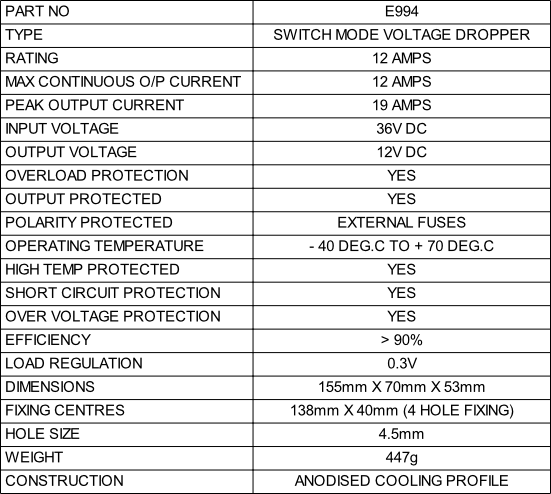

PART NO
E994
TYPE
SWITCH MODE VOLTAGE DROPPER
RATING
12 AMPS
MAX CONTINUOUS O/P CURRENT
12 AMPS
PEAK OUTPUT CURRENT
19 AMPS
INPUT VOLTAGE
36V DC
OUTPUT VOLTAGE
12V DC
OVERLOAD PROTECTION
YES
OUTPUT PROTECTED
YES
POLARITY PROTECTED
EXTERNAL FUSES
OPERATING TEMPERATURE
- 40 DEG.C TO + 70 DEG.C
HIGH TEMP PROTECTED
YES
SHORT CIRCUIT PROTECTION
YES
OVER VOLTAGE PROTECTION
YES
EFFICIENCY
> 90%
LOAD REGULATION
0.3V
DIMENSIONS
155mm X 70mm X 53mm
FIXING CENTRES
138mm X 40mm (4 HOLE FIXING)
HOLE SIZE
4.5mm
WEIGHT
447g
CONSTRUCTION
ANODISED COOLING PROFILE
E994 12AMP VOLTAGE CONVERTER 36V - 12V

Specification
For O.E.M. Customers, Leads can be terminated to suit your requirements

This Converter has been designed
using a building block system
to obtain the power needed
to suit your requirements

E994 36v-12v voltage converter 12A, 36v-12v voltage convertor
