E1199 60AMP BATTERY CHARGER 24V - 12V

(26V Turn On)

Specification:

• PART NO: E1199
• TYPE: SWITCH MODE STEP DOWN BATTERY CHARGER
• CHARGING CURRENT: 60 AMP
• INPUT VOLTAGE: 18 to 30V DC
• OUTPUT VOLTAGE: 14V DC
• CONTROL INPUT VOLTAGE (CVIN):

     CHARGER ENABLED:  >26.5V DC

     CHARGER DISABLED: < 25V DC

• OVERLOAD PROTECTION: YES
• POLARITY PROTECTED: EXTERNAL FUSE
• HIGH TEMP PROTECTED: YES
• SHORT CIRCUIT PROTECTION: YES
• EFFICIENCY: > 90%
• DIMENSIONS: 330mm X 230mm X 80mm
• HOLE SIZE: 6mm (4 HOLE FIXING)
• WEIGHT: 3058g
• CONSTRUCTION: 4 X E932 15A CHARGER MOUNTED  ON A SINGLE ALUMINIUM PLATE

This Charger has been designed using a building block system to obtain the power needed

to suit your requirements

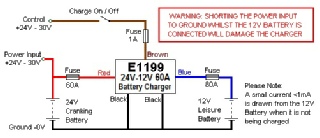

The Battery Charger can be wired in 2 ways:

• Wired as a fully automatic Charger
• Wired as a manually operated Charger
