E1246 40AMP BATTERY CHARGER 12V - 24V

(13v Turn On)

Specification:

• PART NO: E1246
• TYPE: SWITCH MODE STEP UP BATTERY CHARGER
• CHARGING CURRENT: 40 AMP
• INPUT VOLTAGE: 11 – 15V DC
• OUTPUT VOLTAGE: 28V DC
• OVERLOAD PROTECTION: EXTERNAL FUSE
• POLARITY PROTECTED: EXTERNAL FUSE
• HIGH TEMP PROTECTED: YES
• SHORT CIRCUIT PROTECTION: EXTERNAL FUSE
• EFFICIENCY: > 85%
• DIMENSIONS: 330mm X 230mm X 80mm
• HOLE SIZE: 6mm
• WEIGHT: 3058g
• CONSTRUCTION: 4 X E911 (10A) UNITS MOUNTED ON A SINGLE ALUMINUM PLATE

This Converter has been designed using a building block system to obtain the power needed

to suit your requirements

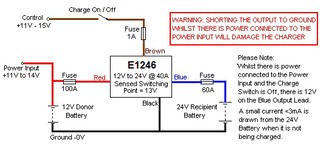

The Battery Charger can be wired in 2 ways:

• Wired as a fully automatic Charger
• Wired as a manually operated Charger
