E930 12AMP BATTERY CHARGER 24V - 24V

(26v Turn On)

Specification:

• PART NO:  E930
• TYPE:  SWITCH MODE BATTERY CHARGER
• Maximum Output (Charging) Current: 12A

     (PVin = 26V)

• Output Voltage (V-out):  28.0V ± 0.1V
• Power Input Voltage (PVin):  18V to 28V
• Control Input Voltage:

     Charger Enabled: >26.5V / Charger Disabled: <25.5V

• Hysteresis:  0.1V
• Control Input Current:  50mA
• Battery Current Drain:  250mA (Charger Disabled)
• Overload Protection:  Yes
• Thermal shutdown: Yes
• Polarity Protection:  External Fuses

     Input = 15A / Output = 15A

• Connections: Flying leads:

     Red = Positive Input

     Black = Negative Input, Output and Control

     Blue = Positive Output

     Yellow = Positive Control

• Physical Dimensions:  215 x 71 x 55mm
• Mountings: 4 x Ø 4.5mm Holes
• Hole Centres: 198 x 40mm
• Construction: Anodised Cooling Profile

For O.E.M. Customers, Leads can be terminated to suit your requirements

This Converter has been designed using a building block system to obtain the power needed

to suit your requirements

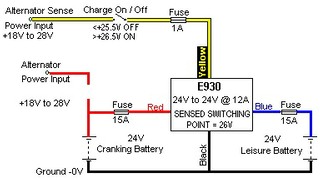

The Battery Charger can be wired in 2 ways:

• Wired as a fully automatic Charger
• Wired as a manually operated Charger
