E937 24AMP BATTERY CHARGER 24V - 24V

(26v Turn On)

Specification:

• PART NO:  E937
• TYPE:  SWITCH MODE BATTERY CHARGER
• Maximum Output (Charging) Current: 24A

     (PVin = 26V)

• Output Voltage (V-out):  28.0V ± 0.1V
• Power Input Voltage (PVin):  18V to 28V
• Control Input Voltage:

     Charger Enabled: >26.5V / Charger Disabled: <25.5V

• Overload Protection:  Yes
• Thermal shutdown: Yes
• Polarity Protection:  External Fuses

     Input = 30A / Output = 30A

• Connections:

     Red = Positive Input

     Black = Negative Input, Output and Control

     Blue = Positive Output

     Yellow = Positive Control

• Physical Dimensions:  285 x 100 x 75mm
• Mountings: 4 x Ø 4.5mm Holes
• Construction: Anodised Cooling Profile (Twin)

This Unit = 2 X E930 12A Battery Chargers wired in parallel to form a single 24A module

This Converter has been designed using a building block system to obtain the power needed

to suit your requirements

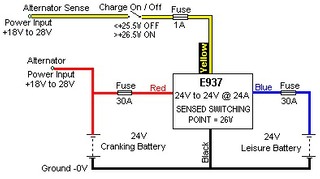

The Battery Charger can be wired in 2 ways:

• Wired as a fully automatic Charger
• Wired as a manually operated Charger
