E1138 24AMP BATTERY CHARGER 12V -

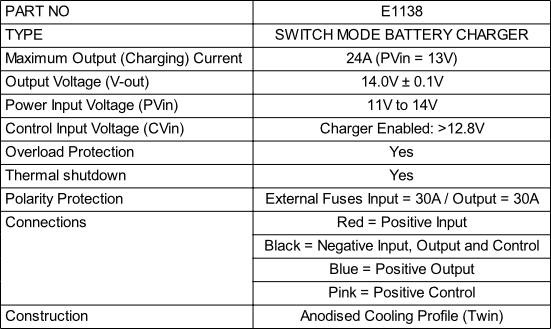

Specification
The Charger starts when the voltage
reaches approximately 12.5V.
This Unit = 2 X E1062 12A Battery Chargers wired in parallel to form a single 24A module

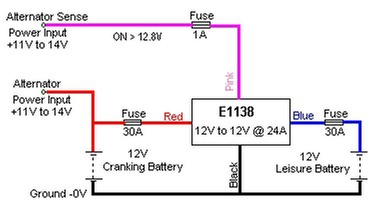

The Battery Charger can be wired in 2 ways:-
Wired as a fully automatic Charger
The Pink Control Wire Connection is wired directly to the +ve Connection of the 12V Cranking (Donor) Battery to switch the Charger on and off automatically.
In this case the Control Wire Connection senses the 12V Cranking (Donor) Battery Voltage and switches the Charger on only when the 12V Cranking (Donor) Battery is being charged.
The Unit automatically controls the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-
Wired as a manually operated Charger
The Pink Control Wire Connection is wired via a Switch to the +ve Connection of the 12V Cranking (Donor) Battery to switch the Charger on and off manually.
In this case the Operator can control when the Battery Charger is switched on or off.
If left on, the Unit will automatically control the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-
This Unit can be provided with
a Charging Indicator.
To request a Charging Indicator,
please add an "L" to the
Part Number, i.e.: E1138-
Also available from this range:
12A 12V -
36A 12V -
48A 12V -
60A 12V -
72A 12V -
Please contact us if you require a higher current rating than those shown
