Wired as a fully automatic Battery Charger Wired as a manually operated Battery Charger
E720 10A 12v-24v Battery Charger (>10V Turn On)

E720 10AMP BATTERY CHARGER 12V - 24V (>10v Turn On)

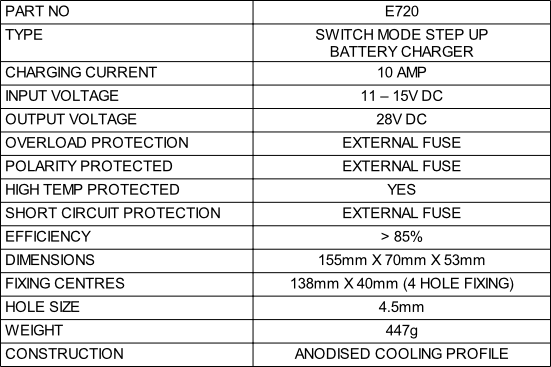

Specification

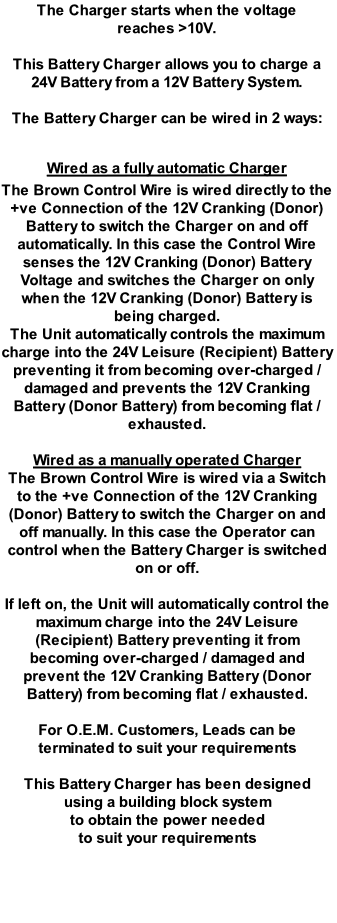

The Charger starts when the voltage

reaches >10V.


This Battery Charger allows you to charge a 24V Battery from a 12V Battery System.


The Battery Charger can be wired in 3 ways:

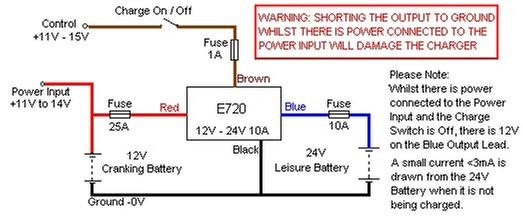

Wired as a fully automatic Charger

The Brown Control Wire is wired directly to the +ve Connection of the 12V Cranking (Donor) Battery to run the Charger all the time.

The Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.



Wired to only operate when

the engine is running

The Brown Control Wire is wired to any +ve connection which becomes live when the Ignition is switched on.

The Unit automatically controls the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.

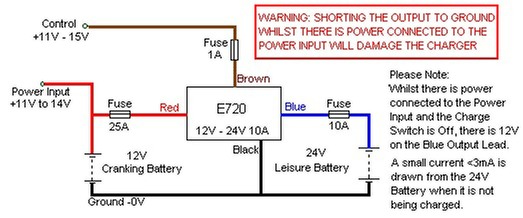

Wired as a manually operated Charger
The Brown Control Wire is wired via a Switch to the +ve Connection of the 12V Cranking (Donor) Battery to switch the Charger on and off manually.

In this case the Operator can control when the Battery Charger is switched on or off.

If left on, the Unit will automatically control the maximum charge into the 24V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged.



For O.E.M. Customers, Leads can be terminated to suit your requirements


This Battery Charger has been designed

using a building block system

to obtain the power needed

to suit your requirements


Also available in the Range:











Please contact us if you require a higher current rating than those shown
