E1153 24V-12V 30A Split Charger (26V Turn On)

E1153  30AMP 24V - 12V SPLIT CHARGER (26V Turn On)


This Unit = 2 X E1152 15A Split Chargers

wired in parallel to form a single 30A module.

This Split Charger starts when the voltage

reaches approximately 26V.

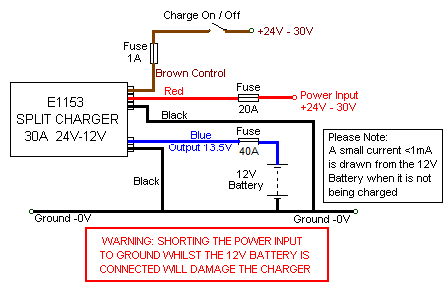

This Unit has a Brown Control Wire Connection which is wired directly to the +ve Connection of the 24V Cranking (Donor) Battery. The Brown Control Wire Connection senses the 24V Cranking (Donor) Battery Voltage and switches the Split Charger on only when the 24V Cranking (Donor) Battery is being charged.

Unlike Relay or Diode Split Chargers this Unit automatically controls the maximum charge into the 12V Leisure (Recipient) Battery preventing it from becoming over-charged / damaged and prevents the 24V Cranking Battery (Donor Battery) from becoming flat / exhausted

Please contact us if you require a higher current rating than those shown
