E045 12V BATTERY MONITOR
Specification
Specification
This is a very easy to fit Unit that monitors the Vehicle’s Electrics and alerts the Driver via an Audible / Visual Device that the Battery is becoming exhausted or that the Charging System is becoming faulty.
This Unit is sold with separate Relay / Solenoid to suit the application.
OPERATION
The Warning Lamp flashes, the Buzzer sounds and the Load is disconnected when the Battery Voltage reaches 11.5V.
When the Battery is replenished and the Voltage rises to 13.5V the Load is reconnected, the Lamp ceases flashing and the Buzzer ceases sounding.
When the Override Switch is operated, the Load is reconnected. However the Lamp continues to flash and the Buzzer continues to sound.
When the Ignition is switched on the Unit is disabled.
When the Override Switch is operated, the Load is reconnected. However the Lamp continues to flash and the Buzzer continues to sound.
When the Ignition is switched on the Unit is disabled.

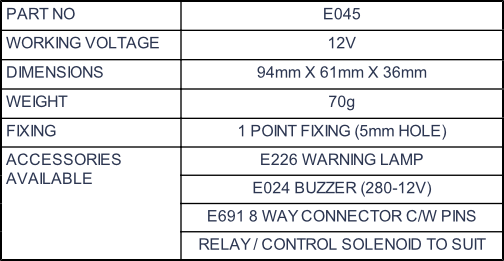

PART NO
E045
WORKING VOLTAGE
12V
DIMENSIONS
94mm X 61mm X 36mm
WEIGHT
70g
FIXING
1 POINT FIXING (5mm HOLE)
ACCESSORIES AVAILABLE
E226 WARNING LAMP
E024 BUZZER (280-12V)
E691 8 WAY CONNECTOR C/W PINS
RELAY / CONTROL SOLENOID TO SUIT
