PART NO
E1003
TYPE
SWITCH MODE STEP UP
BATTERY CHARGER
CHARGING CURRENT
20 AMP
INPUT VOLTAGE
11 – 15V DC
OUTPUT VOLTAGE
28V DC
OVERLOAD PROTECTION
EXTERNAL FUSE
POLARITY PROTECTED
EXTERNAL FUSE
HIGH TEMP PROTECTED
YES
SHORT CIRCUIT PROTECTION
EXTERNAL FUSE
EFFICIENCY
> 85%
DIMENSIONS
215mm X 100mm X 75mm
FIXING CENTRES
70mm X 200mm
HOLE SIZE
4.5mm
WEIGHT
1150g
CONSTRUCTION
ANODISED COOLING PROFILE (TWIN)
E1003 20AMP BATTERY CHARGER 12V - 24V (>10v Turn On)

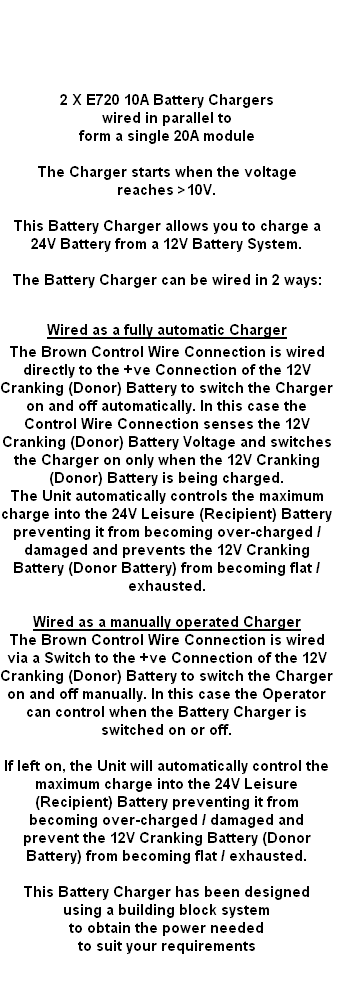

 Specification

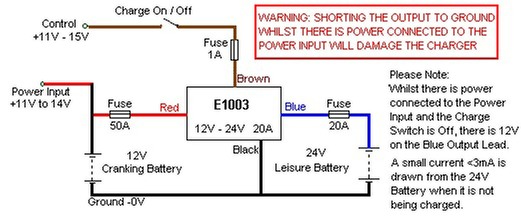

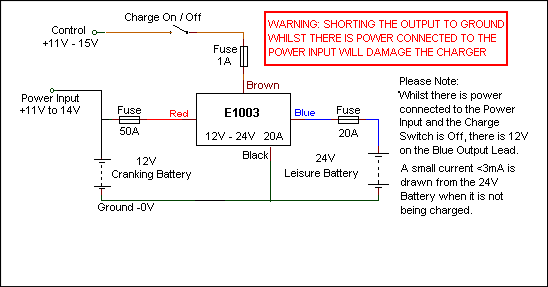

                                Wired as a fully automatic Battery Charger

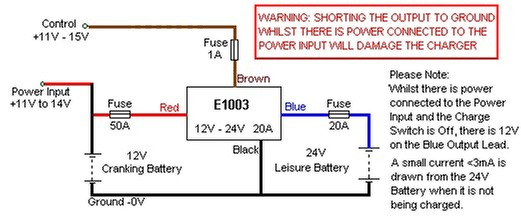

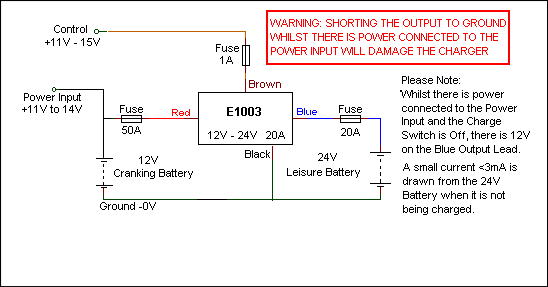

           Wired as a manually operated Battery Charger
E1003 20A 12v-24v Twin Battery Charger (>10V Turn On)
