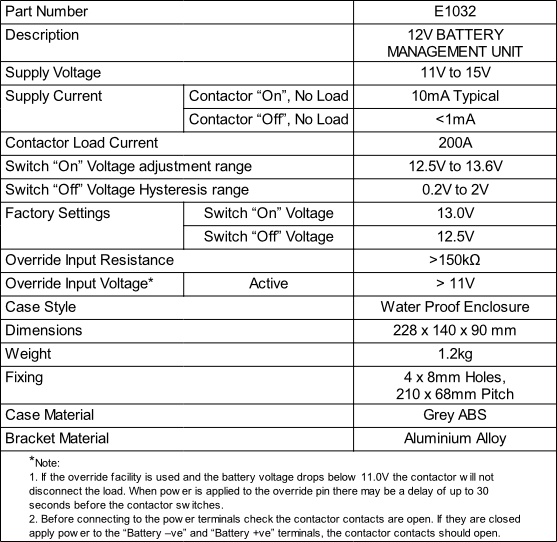

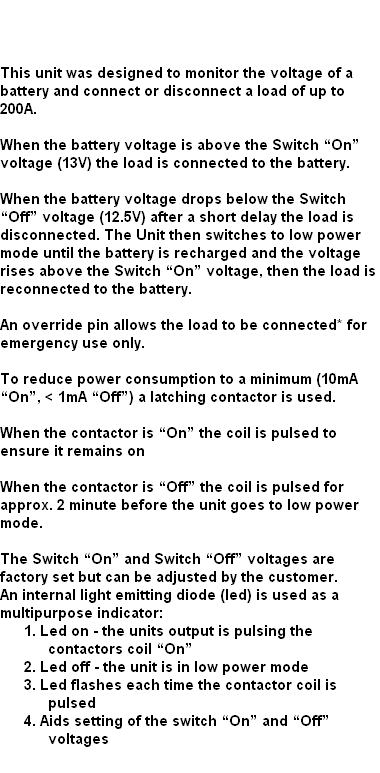

Part Number
E1032
Description
12V BATTERY
MANAGEMENT UNIT
MANAGEMENT UNIT
Supply Voltage
11V to 15V
Supply Current
Contactor “On”, No Load
10mA Typical
Contactor “Off”, No Load
<1mA
Contactor Load Current
200A
Switch “On” Voltage adjustment range
12.5V to 13.6V
Switch “Off” Voltage Hysteresis range
0.2V to 2V
Factory Settings
Switch “On” Voltage
13.0V
Switch “Off” Voltage
12.5V
Override Input Resistance
>150kΩ
Override Input Voltage*
Active
> 11V

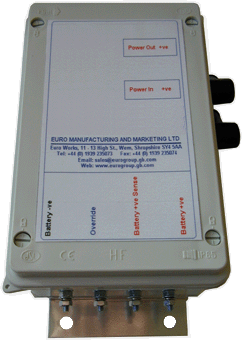

Case Style
Water Proof Enclosure
Dimensions
228 x 140 x 90 mm
Weight
1.2kg
Fixing
4 x 8mm Holes,
210 x 68mm Pitch
210 x 68mm Pitch
Case Material
Grey ABS
Bracket Material
Aluminium Alloy

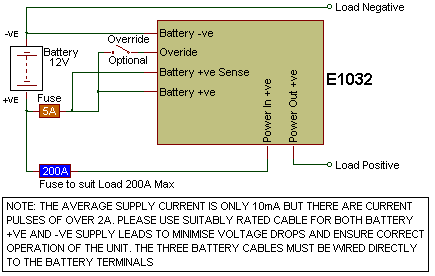

*Note:
1. If the override facility is used and the battery voltage drops below 11.0V the contactor will not
disconnect the load. When power is applied to the override pin there may be a delay of up to 30
seconds before the contactor switches.
2. Before connecting to the power terminals check the contactor contacts are open. If they are closed
apply power to the “Battery –ve” and “Battery +ve” terminals, the contactor contacts should open.
E1032 12V 200A BATTERY MONITOR
Specification
Specification
