This Unit provides a set voltage to switch a load of up to 1A.
The current drawn from the voltage source is < 1mA below the switching voltage.
The output switches On as the voltage rises and Off as the voltage falls.
The switch voltage can be set in the range 10.5V to 14.0V.
This Unit was designed to maintain the Cranking Battery threshold voltage of 12.5V – 13.5V, depending on the setting of the Voltage Adjuster (ie: to suit the application) thus retaining sufficient battery capacity to start the Vehicle.
The Unit also can be used as a Solid State 1A Relay.

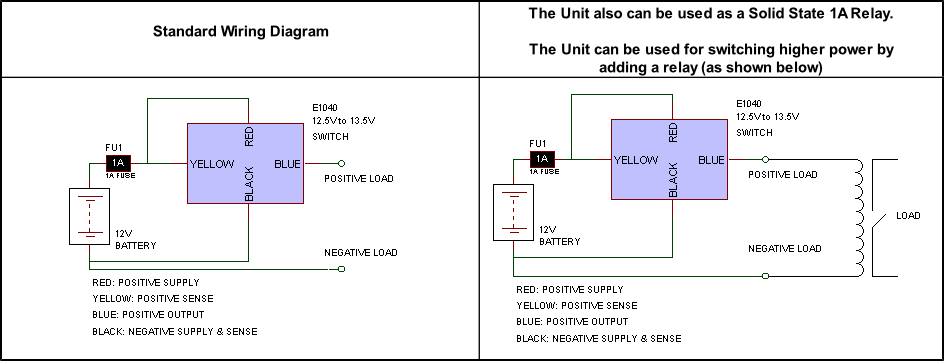

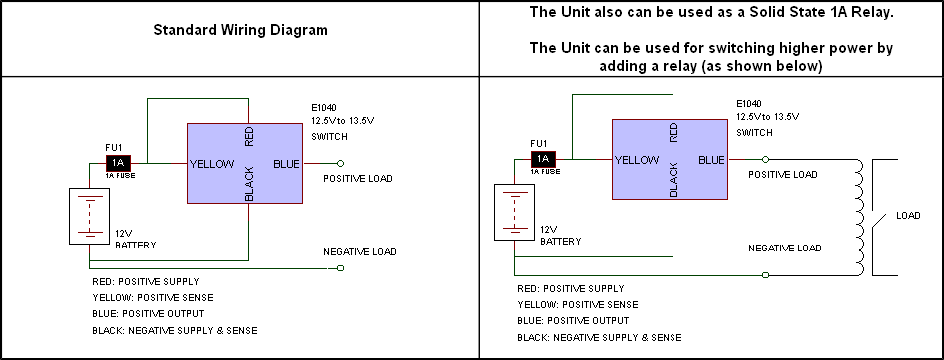

The Unit can be used for switching higher power by adding a relay - SEE WIRING DIAGRAM BELOW
The current drawn from the voltage source is < 1mA below the switching voltage.
The output switches On as the voltage rises and Off as the voltage falls.
The switch voltage can be set in the range 10.5V to 14.0V.
This Unit was designed to maintain the Cranking Battery threshold voltage of 12.5V – 13.5V, depending on the setting of the Voltage Adjuster (ie: to suit the application) thus retaining sufficient battery capacity to start the Vehicle.
The Unit also can be used as a Solid State 1A Relay.
The Unit can be used for switching higher power by adding a relay -

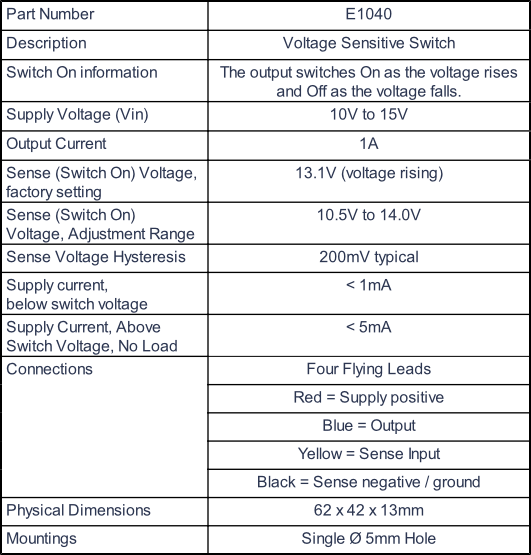

Part Number
E1040
Description
Voltage Sensitive Switch
Switch On information
The output switches On as the voltage rises and Off as the voltage falls.
Supply Voltage (Vin)
10V to 15V
Output Current
1A
Sense (Switch On) Voltage, factory setting
13.1V (voltage rising)
Sense (Switch On)
Voltage, Adjustment Range
Voltage, Adjustment Range
10.5V to 14.0V
Sense Voltage Hysteresis
200mV typical
Supply current,
below switch voltage
below switch voltage
< 1mA
Supply Current, Above Switch Voltage, No Load
< 5mA
Connections
Four Flying Leads
Red = Supply positive
Blue = Output
Yellow = Sense Input
Black = Sense negative / ground
Physical Dimensions
62 x 42 x 13mm
Mountings
Single Ø 5mm Hole
