Part Number
E1045
Description
24V BATTERY
MANAGEMENT UNIT
MANAGEMENT UNIT
Supply Voltage
20V to 30V
Supply Current
Contactor “On”, No Load
10mA Typical
Contactor “Off”, No Load
<1mA
Contactor Load Current
200A
Switch “On” Voltage adjustment range
23.5V to 26.5V
Switch “Off” Voltage Hysteresis range
0.2V to 2V
Factory Settings
Switch “On” Voltage
26.0V
Switch “Off” Voltage
23.5V
Override Input Resistance
>150kΩ
Override Input Voltage*
Active
> 20V
Case Style
Water Proof Enclosure
Dimensions
228 x 140 x 90 mm
Weight
1.2kg
Fixing
4 x 8mm Holes,
210 x 68mm Pitch
210 x 68mm Pitch
Case Material
Grey ABS
Bracket Material
Aluminium Alloy
*Note:
1. If the override facility is used and the battery voltage drops below 20.0V the contactor will not disconnect the load. When power is applied to the override pin there may be a delay of up to 30 seconds before the contactor switches.
2. Before connecting to the power terminals check the contactor contacts are open. If they are closed apply power to the “Battery –ve” and “Battery +ve” terminals, the contactor contacts should open.

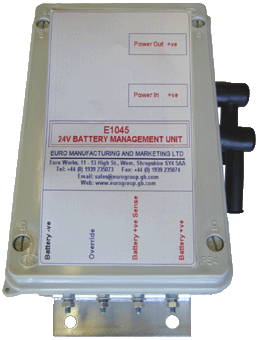

E1045 24V 200A BATTERY MONITOR
Specification
Specification
