E1107 12V + 24V BATTERY STATUS INDICATOR
Specification
Specification
This Battery Status Indicator uses a LED display to give a visual indication of the battery condition.
It has been designed for monitoring systems where the Cranking Battery is 12V and the Leisure / Secondary Battery is 24V -
The Battery Status Indicator monitors the Battery voltage and changes the LED indication accordingly.
The centre off switch allows the Battery Status Indicator to be switched between the 12V Battery, the 24V Battery or Off, thus preventing wasteful discharge when the monitor is not being used.

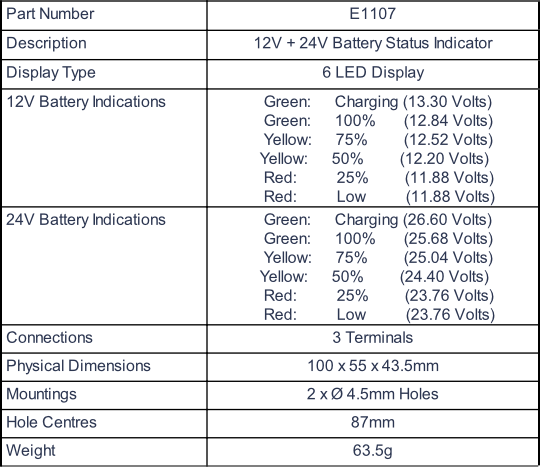

Part Number
E1107
Description
12V + 24V Battery Status Indicator
Display Type
6 LED Display
12V Battery Indications
Green: Charging (13.30 Volts)
Green: 100% (12.84 Volts)
Yellow: 75% (12.52 Volts)
Yellow: 50% (12.20 Volts)
Red: 25% (11.88 Volts)
Red: Low (11.88 Volts)
Green: 100% (12.84 Volts)
Yellow: 75% (12.52 Volts)
Yellow: 50% (12.20 Volts)
Red: 25% (11.88 Volts)
Red: Low (11.88 Volts)
24V Battery Indications
Green: Charging (26.60 Volts)
Green: 100% (25.68 Volts)
Yellow: 75% (25.04 Volts)
Yellow: 50% (24.40 Volts)
Red: 25% (23.76 Volts)
Red: Low (23.76 Volts)
Green: 100% (25.68 Volts)
Yellow: 75% (25.04 Volts)
Yellow: 50% (24.40 Volts)
Red: 25% (23.76 Volts)
Red: Low (23.76 Volts)
Connections
3 Terminals
Physical Dimensions
100 x 55 x 43.5mm
Mountings
2 x Ø 4.5mm Holes
Hole Centres
87mm
Weight
63.5g
