PART NO
E1156
TYPE
SWITCH MODE SPLIT CHARGER
Maximum Output (Charging) Current
12A (PVin = 13V)
Output Voltage (V-out)
14.0V ± 0.1V
Power Input Voltage (PVin)
11V to 14V
Control Input Voltage (CVin)
Charger Enabled: >13.3V
Charger Disabled: <12.7V
Hysteresis
0.1V
Control Input Current
50μA
Battery Current Drain
250μA (Charger Disabled)
Overload Protection
Yes
Thermal shutdown
Yes
Polarity Protection
External Fuses Input = 15A / Output = 15A
Connections
Flying leads
Red = Positive Input
Black = Negative Input, Output and Control
Blue = Positive Output
Pink = Positive Control
Physical Dimensions
215 x 71 x 55mm
Mountings
4 x Ø 4.5mm Holes
Hole Centres
198 x 40mm
Construction
Anodised Cooling Profile

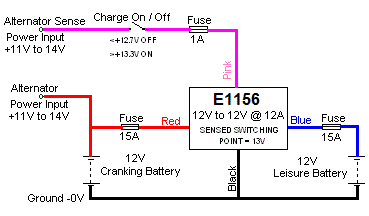

E1156 12AMP SPLIT CHARGER 12V - 12V (13V Turn On)
Specification
E1156 12A 12V-12V Split Charger (13V Turn On)
