PART NO
E1158
TYPE
SWITCH MODE SPLIT CHARGER
Maximum Output (Charging) Current
12A (PVin = 26V)
Output Voltage (V-out)
28.0V ± 0.1V
Power Input Voltage (PVin)
18V to 28V
Control Input Voltage (CVin)
Charger Enabled:  >26.5V
Charger Disabled: <25.5V
Control Input Current
50μA
Battery Current Drain
250μA (Charger Disabled)
Overload Protection
Yes
Thermal shutdown
Yes
Polarity Protection
External Fuses Input = 15A / Output = 15A
Connections
Flying leads
Red = Positive Input
Black = Negative Input, Output and Control
Blue = Positive Output

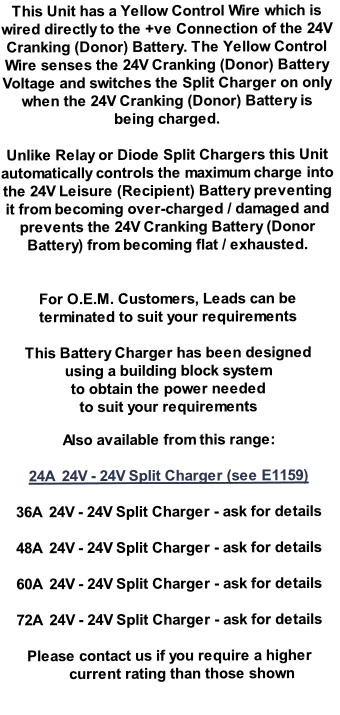

Yellow = Positive Control
Physical Dimensions
215 x 71 x 55mm
Mountings
4 x Ø 4.5mm Holes
Hole Centres
198 x 40mm
Construction
Anodised Cooling Profile
E1158 12AMP SPLIT CHARGER 24V - 24V (26V Turn On)
Specification
E1158 12A 24V-24V Split Charger (26V Turn On)
