PART NO
E1159
TYPE
SWITCH MODE SPLIT CHARGER
Maximum Output (Charging) Current
24A (PVin = 26V)
Output Voltage (V-out)
28.0V ± 0.1V
Power Input Voltage (PVin)
18V to 28V
Control Input Voltage (CVin)
Charger Enabled:  >26.5V
Charger Disabled: <25.5V
Overload Protection
Yes
Thermal shutdown
Yes
Polarity Protection
External Fuses Input = 15A / Output = 15A
Connections
Red = Positive Input
Black = Negative Input, Output and Control
Blue = Positive Output

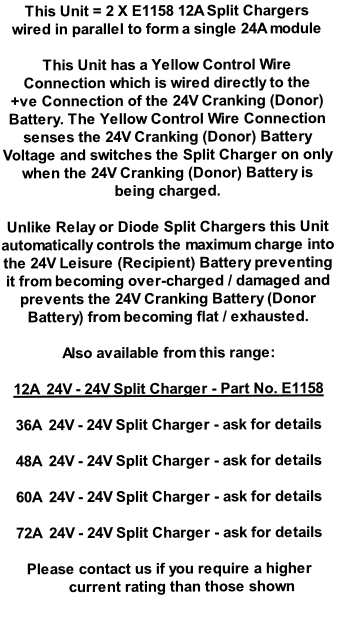

Yellow = Positive Control
Construction
Anodised Cooling Profile (Twin)
E1159 24AMP SPLIT CHARGER 24V - 24V (26V Turn On)
Specification
E1159 24A 24V-24V Split Charger (26V Turn On)
