PART NO
E756
TYPE
SWITCH MODE VOLTAGE DROPPER
RATING
10 AMPS
MAX CONTINUOUS O/P CURRENT
10 AMPS
PEAK OUTPUT CURRENT
19 AMPS
INPUT VOLTAGE
48V DC
OUTPUT VOLTAGE
24V DC
OVERLOAD PROTECTION
YES
OUTPUT PROTECTED
YES
POLARITY PROTECTED
YES
OPERATING TEMPERATURE
- 40 DEG.C TO + 70 DEG.C
HIGH TEMP PROTECTED
YES
SHORT CIRCUIT PROTECTION
YES
OVER VOLTAGE PROTECTION
YES
EFFICIENCY
> 90%
LOAD REGULATION
0.3V
DIMENSIONS
215mm X 70mm X 50mm
FIXING CENTRES
198mm X 40mm
HOLE SIZE
4.5mm
WEIGHT
570g
CONSTRUCTION
ANODISED COOLING PROFILE
E756 10AMP VOLTAGE CONVERTER 48V - 24V
Specification
Specification

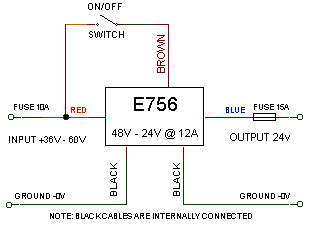

For O.E.M. Customers, Leads can be terminated to suit your requirements
This Converter has been designed
using a building block system
to obtain the power needed
to suit your requirements
This Converter has been designed
using a building block system
to obtain the power needed
to suit your requirements
